CFX151

  • Acasa
  • Produse
  • Produse Renkus Heinz
  • CFX151
Technical Information
Sensitivity: CFX151 100 dB (1W/1m)
CF151-2
CF151-5
CF151-2R
CF151-5R
1.0 V for rated power output
Max SPL: CFX151 131 dB peak
CF151-2
CF151-2R
126 dB peak
CF151-5
CF151-5R
130 dB peak
Dispersion: All Models 90° H x 40° V, 60° H x 40° V optional
Freq. Response: All Models ± 3 dB, 60 Hz to 18 kHz
HF Driver: All Models 2″ SSD203-8F driver, 40 W RMS, 80 W Pgm
LF Driver: All Models 15″ model SSL15-15F, 350 W RMS @ 4 Ohms, 700 W Pgm;
Enclosure: All Models Hardwood, perforated metal grille
Finish: All Models Black or White paint
Custom color optional
Power: CFX151 700 W Pgm @ 4 Ohms
CF151-2
CF151-5
CF151-2R
CF151-5R
115 V AC or 230 V AC
Connectors: CFX151 Screw terminals & looping Neutrik 4-pin SpeakOn style connectors
Hardware: All Models 6-point Universal Mounting Hardware (Metric M10 threads)
U-bracket attachment points
35 mm (1 3/8”) tripod socket
Omnimount attachment plate optiona
Dimensions: All Models 29 3/8″ H x 19″ W x 16 7/8″ D
(74.6 cm x 48.3 cm x 42.8 cm)
Weight: CFX151 70.2 Lbs (31.8 Kg) Net
CF151-2
CF151-2R
72.2 Lbs (32.8 Kg) Net
CF151-5
CF151-5R
74.2 Lbs (33.7 Kg) Net





Share

Asemanatoare

26 iunie 2018

C Series


Afla mai mult
26 iunie 2018

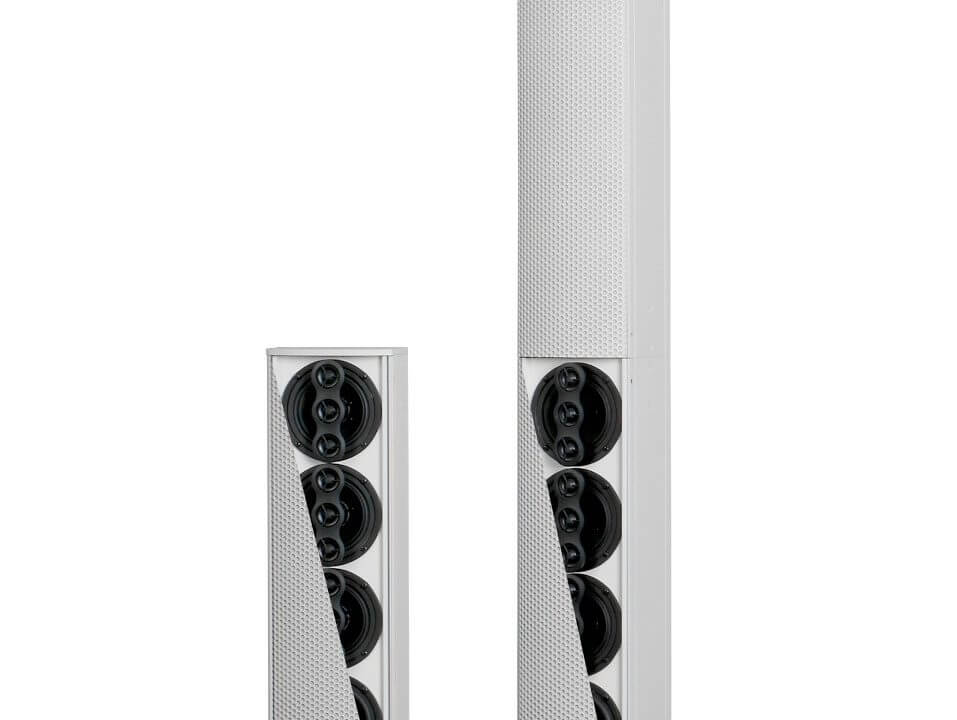

IC7-II & ICX7-II
