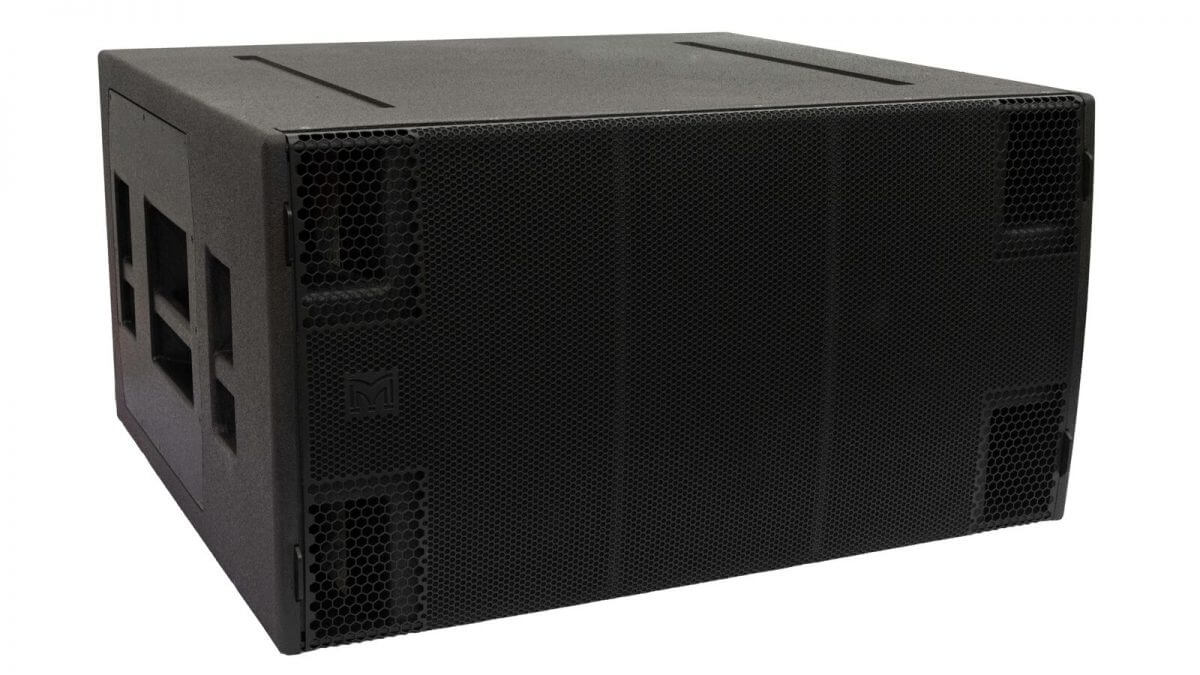

The SXH218 is an extremely powerful subwoofer capable of producing 148dB peak output at 1m. It is the ideal partner for Wavefront Precision WPC arrays where maximum low frequency output is required as well as a standalone solution for premium permanent installations such as nightclubs.
Features
- Ultra-high output ground-stacked subwoofer
- Hybrid® horn/reflex loading for maximum acoustic efficiency and low frequency extension
- Dual long-excursion 18” (460mm)/4.5” (115mm) voice coil neodymium drivers
- Forward or rear-facing operation
Applications
- Outdoor festivals
- Stadiums, arenas and theatres
- Concert halls
- Nightclubs
Specifications
| TYPE | Hybrid® horn/reflex subwoofer |
| FREQUENCY RESPONSE (1) | 32Hz – 150Hz ±3dB, -10dB @ 27Hz |
| DRIVER | 2 x 18” (460mm)/4.5” (115mm) voice coil, long excursion, neodymium magnet, waterproof cone |
| RATED POWER (2) | 3000W AES, 12000W peak |
| RECOMMENDED AMPLIFIER | iKON iK42 |
| SENSITIVITY (10) | 107dB |
| MAXIMUM SPL (9) | 148dB peak |
| NOMINAL IMPEDANCE | 4Ω |
| DISPERSION (-6DB) | Omnidirectional/or Cardioid (paired) |
| ENCLOSURE | Multi-laminate birch/poplar ply |
| FINISH | Textured Black Polyurea |
| PROTECTIVE GRILLE | Black perforated steel |
| CONNECTORS | 2 x NL4 |
| PIN CONNECTIONS (INPUT) | Input +1/-1 |
| PINS CONNECTIONS (LINK) | Refer to SXH218 datasheet or Input panel diagram for linking options |
| FITTINGS |
|
| DIMENSIONS (INCL SKIDS) |
|
| WEIGHT | 120kg (264lbs), with castors 124kg (273lbs) |
